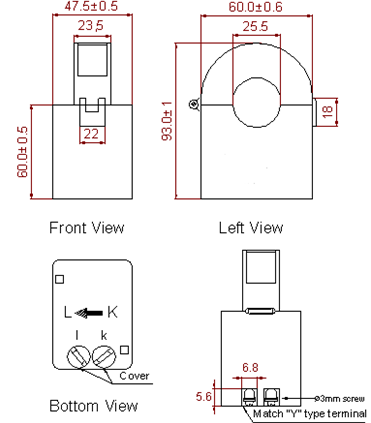

Split Core Current Transformer

HOME > Current > Current Transformer

  • ​ENTRIES:Part Number GuideData SheetFAQ
  • Operating temperature:               -40~85℃

    Primary Current (Amp.)50/60Hz:        150A~500A

    Accuracy @RL≦10Ω:                Class 1~2%

    Turns ratio:                         1:30,1:40,1:60,1:80,1:100,1:2000; 1:3000 optional

    Dielectric Withstanding Voltage (Hi-pot):  3kV/1mA/1min

    Insulation Resistance:               DC500V/100MΩ min

    Opening Angle:                    180 degree
