Environmental protection meter

HOME > IOT PRODUCTS > Submeter metering monitoring system

  • ENTRIES:Part Number GuideData SheetFAQ

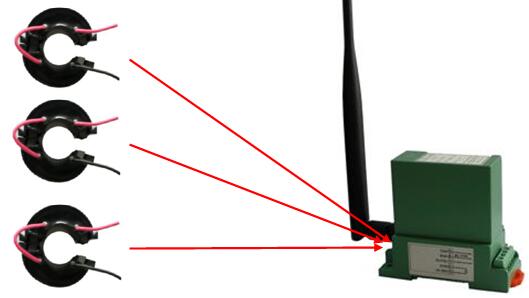

  • Passive IoT environmental protection metering is a self-receiving working power supply (no need to use switching power supply), wireless transmission real-time power detection unit, detection range: current: 0-1000A; voltage 0-1000V. Monitorable: voltage, Current, frequency, active power, reactive power, power factor, harmonic analysis and accumulated power.

    It's with Internet of Things NB-IOT, LORA, 433MHz and other wireless transmission, RS485, CAN and other wired transmission.

    This product is mainly used for environmental protection condition monitoring, from environmental protection equipment monitoring to enterprise production status monitoring, collecting pollution equipment emission data and pollution control equipment data, controlling the rational use of enterprise equipment, is an important means to consolidate the existing pollution source automatic monitoring construction results. . And by collecting the total electricity consumption of the enterprise and the electricity consumption data of the production equipment and environmental protection equipment, the data analysis shows that the production conditions are abnormal.


    NO.

    Type

    Indicator name

    Specifications

    1

    Accuracy

    Accuracy level

    0.5%

    Temperature drift

    <300ppm/℃(-40℃~70℃)

    2

    Input range

    Current

    D case style: 200A, transformer 200-1000A

    Voltage: 0-1000V

    3

    Power supply

    Voltage

    DC: 11~28V

    Rated power consumption

    <1W(24V); (Auxiliary power supply is different, power consumption is different)

    4

    Application environment

    Operating temperature

    -20℃~70℃

    Working humidity

    ≤95% (no dew)

    Storage temperature

    -40~75℃

    Storage humidity

    ≤95% (no dew)

    5

    Reliability

    MTBF

    >30000 h

    Isolation voltage

    Input corresponding output: 2500V DC / 1 minute; isolation voltage between power supply and input: 2500V DC / 1 minute; isolation voltage between power supply and output: 2500V DC / 1 minute

    Overload capability

    2 times the nominal input voltage, lasting 1S, interval 10S, repeated 10 times;

    10 times nominal input current, lasting 1S, interval 300S, repeating 5 times

    Electromagnetic CompatibilityAnti-lightning surge: power supply, input terminal ±4KV; digital port: ±2KV

    Anti-group pulse: power supply, input terminal ±4KV; digital port: ±2KV

    Antistatic: digital port ±8KV

         6Wireless parameter  NB-IOT

    SIM card type: Telecom

    Supported bands: Band 1/2/3/5/8/12/13/17/18/19/20/25/26/28/66/70

    Bandwidth: 100bps~100Kbps

    Transmit power: <23dBm±2dB

    Acceptance sensitivity: <-139dBm±1dB

    Antenna interface: support SMA antenna interface

    Transmission protocol: MODBUS (customizable)





    1 It is especially suitable for power detection in passive and non-wired communication environments, with zero wiring and easy installation;

    2 Wide detection range: current: 0-1000A; voltage 0-1000V;

    3 Communication method: It has various wireless transmission modes such as Internet of Things NB-IOT, LORA, etc., and has self-organizing network function;

    4 Strong detection function: can detect voltage, current, frequency, active power, reactive power, power factor, harmonic analysis and accumulated power;

    5 High reliability:

    The product can work in a high pressure environment of 10KV.

    It has the function of detecting data storage, and data self-protection of power-down and automatic transmission after reply.

    The anti-interference ability reaches the national standard level or above.
