Power frequency transducer

HOME > PRODUCT > Frequency

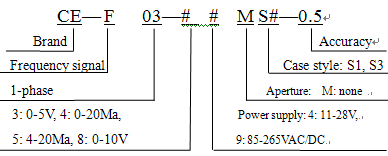

  • ​ENTRIES:Part Number GuideData SheetFAQ
  • This device is an isolation transducer of power frequency signal detection. Using the optocoupler isolation and convert the input frequency signal into a linear output of 0 ~ 5V, 0 ~ 20mA, 4 ~ 20mA and other standard signals. This product uses two isolation methods that the input and output are isolated from the power supply. A variety range of input and output can be option, and built-in function switch free to choose. The product is simple to install, can be widely used in communications, electricity, railways, industrial control and other fields.

    Data Sheet

    Power supply: DC +11V~+28V,AC/DC 85V~265V;
    Rated power consumption: <1.7W;
    Input range: frequency: 40Hz~75Hz
    Amplitude: 0-500V (amplitude change of 10%-120%);
    Note: The products are with seven ranges of 40-60 /40-70/45-55/45-65/45-75/50-70/55-65Hz that can be freely selectable;
    Output: 0-5V, 0-20mA, 1-5V, 4-20mA and 0-10V;
    The zero point of voltage or current output can be set freely;
    Accuracy class: 0.5;
    Load capacity: voltage output ≥ 500Ω,
    Current output ≤ 300Ω (24V power supply can reach 800Ω);
    Temperature drift: <250ppm/℃;
    Isolation voltage: DC 2500V;
    Response time: ≤100 mS;
    Rated power consumption:<1.7W
    Output ripple: <10mV;
    Frequency range: 40Hz~75Hz
    Surge immunity:
    Input / Power Ports Four 4KV (L-N / 2Ω / complex);
              Output port two 2KV (L-N / 40Ω / integrated wave);;
    Impulse immunity: input / power port± 2KV, analog I / O port ± 1KV;
    Input overload capacity: continuous overload: 120%;
    short-term overload: 2 times the rated voltage input value for 1 second;
    Operating temperature: -30°C~+70°C;
    Storage conditions: -40°C~+70°C.





    Case Style

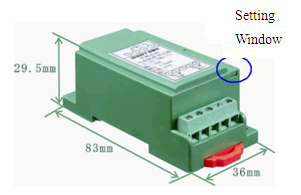

      Figure 1, product appearance of MS1 case with +11~+28V power supply


     Figure 2, product appearance of MS3 case with +220V power supply

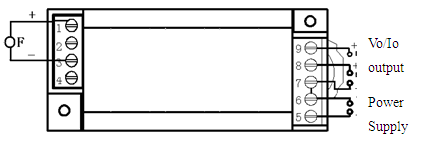

      Wiring diagram of +11V~+28V power supply

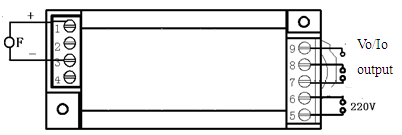

                                                                                                                             Wiring diagram of 220V power supply

    There are 7 ranges to freely choose in the frequency range of 40Hz-75Hz.
    Wide DC power supply: + 11V ~ + 28V;
    With free selection function of 0-5V or 1-5V, 0-20mA or 4-20mA; can be freely set the zero output;
    Using digital technology, high stability, accuracy up to 0.2%.
