Three phase AC current digital transducer

HOME > Current > Three Phase AC Digital Transducer

  • ENTRIES:Part Number GuideData SheetFAQ
  • This product is a 3-channel AC current acquisition and measurement digital isolation transducer. It can measure the 3-channel current of the AC circuit. Using high-precision 24-bit dedicated AD chip, the ratio dynamic range can be up to 1000: 1 True RMS measurement of current is with high accuracy, good stability and high communication speed, the completely isolated processing technology is with anti-interference ability. Measurement of electrical parameters through the RS-485 digital interface output to achieve long-distance transmission, the product MODBUS protocol is complete compatible with a variety of configuration software or PLC equipment MODBUS (RTU) protocol. It can be applied to power, room monitoring, industrial measurement and other fields.


    Data Sheet

    NO,

    Item

    Date

    Unite

    Remarks

    1

    Accuracy

    0.2

    %


    Input range

    S3 case: 30A;

    S5case: 200A;  N1case: 5A;


    The maximum range for each specification

    Frequency

    Frequency response: 20Hz-1KHz; Frequency   measurement: 20-600Hz



    2

    Baud rate

    115.2K, 57.6K, 38.4K, 19.2K, 9600(default)   4800, 2400, 1200

    bps

    Factory default communication format:   9600, N / 8/1, address 1; S5 type up to 19.2K;

    Communication

    RS-485(twisted pair line) , RS-232C(treble   line, only for N style parts)


    RS422 optional

    Parity

    None, Even, Odd, Space



    Max. number of nodes

    64

    node

    Only for RS-485

    Bus protection

    400W transient voltage


    ESD protection and thermosnap

    3

    A/D SPEED

    100

    mS


    4

    Working temperature

    -20~+60



    5

    Isolation voltage

    Input/output:   2500V DC for 1 min

    Input/power supply2500V   for 1 min

    Output/power supply2500V   for 1 min



    V



    The double isolation part numbers, their   output and power supply are grounded together, there is only between the input and output   isolation voltage

    6

    Overload

    2 x voltage span 1   sec. 10 for times with interval of 10 sec.

    10 x current span   for 1 sec. 5 times with an interval of 300 sec (only for hole thru.   parts)


    The input outside the linear range will   result in poor accuracy

    7

    MTBF

    >30000

    hour


    8

    Auxiliary power supply

    +5V/+12V/+24V/+48V/ AC220V

    V

    220VAC,DC only for N case parts

    9

    Power consumption

    ≤250mW(+12V)≤500mW(+24V)

    mW

    Power consumption depends on power supply   to be used

    10

    Temperature drift

    ≤300

    ppm/

     (-20~+60)



    Case Style (marked in the figure Unit: mm)

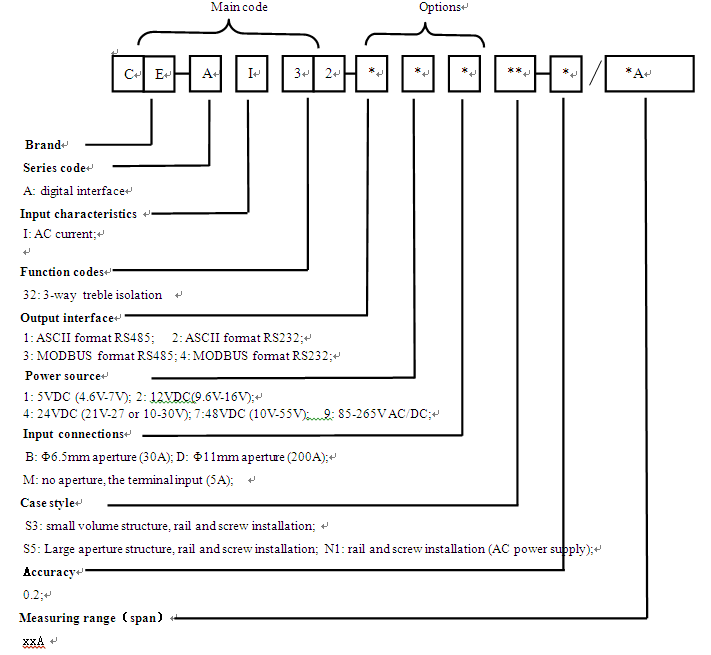

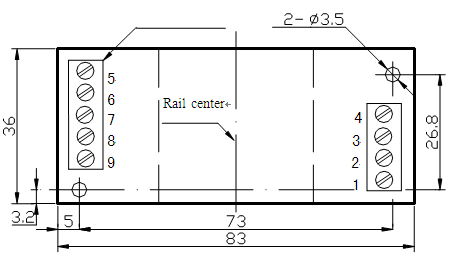

                                                                Figure 5.1 CE-AI3*-**BS3 product outline

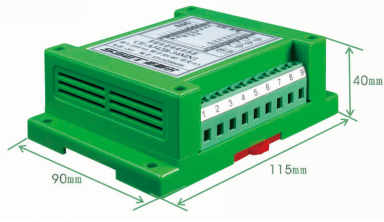

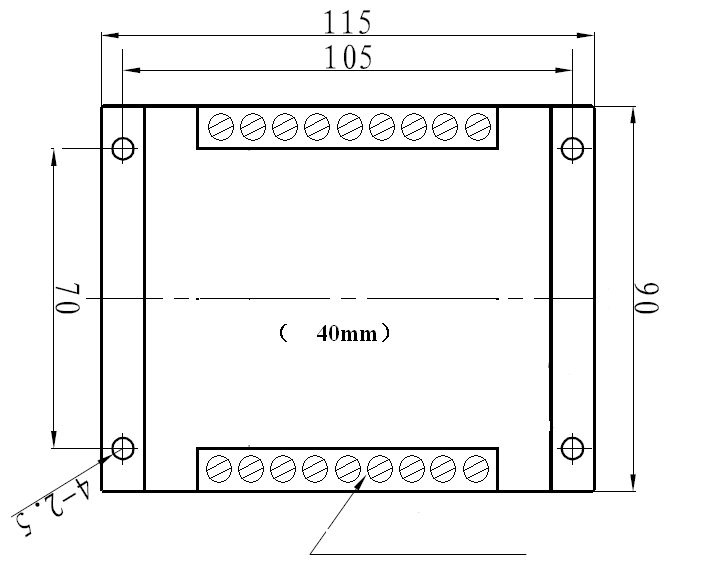

    Figure 5.4 installation diagram of CE-AI3*-**MN1

                             Figure 5.3 CE-AI3*-**MN1product outline(220VAC power supply

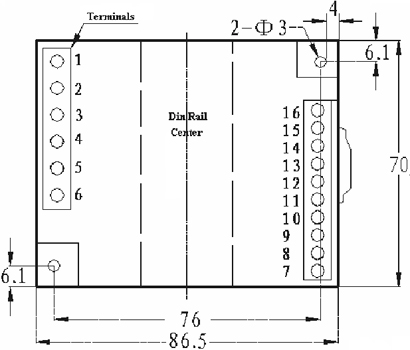

    Figure 5.6 installation diagram of CE-AI2*-**DS5

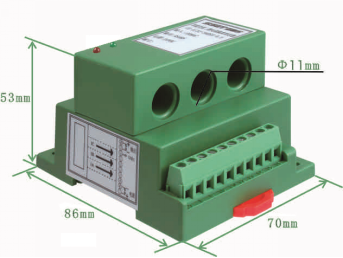

    Figure 5.5 CE-AI3*-**DS5 product outline




                                                                                Figure 5.6 installation diagram of CE-AI2*-**DS5

    Terminal definition and connection diagrams

    S3 case 3-phase current connection diagram reference figure 6.1(Current punch input, Φ6.5mm, max. 30A)


    Figure 6.1, CE-AI32-**BS3 type wiring diagram (Then output of terminal 7 is +5 V to provide 5V output (<20mA) in common ground with power supply)

    N case 3-way current wiring diagram is shown in Figure 6.2; (current terminal input, the maximum 5A)


                                                                                                                Figure 6.2, CE-AI32 - ** MN1 product wiring reference drawing of 3-way current

    Refer to Figure 6.3 for the 3-way current wiring diagram of S5 (current input, Φ11mm, max. 200A; Φ20mm, max. 800A)


                                                                                                             Figure 6.3, CE-AI32 - ***S5 case product wiring diagram of 3-way Current


    Available with wide power supply: DC: 10-30V or 10-55V.
    With odd parity, even parity, no parity, 2 stop bits and other communication methods are free to set.
    Communication speed optional, the maximum communication speed to 115200 bps.
    The intelligent transducer with the smallest size and wide current measurement range in the peer
    Electroplating has a positive and negative cumulative, and power-down storage function.
    With red and green light-emitting diode instructions function, the red light indicates the normal operation of the product (100mS flashing), the green light indicates the product communication.
    High anti-interference ability, the input, output and power port to resist the surge voltage up to 2KV or more.
