Resistance Transducer

HOME > PRODUCT > Resistance

  • ​ENTRIES:Part Number GuideData SheetFAQ
  • The product is an potentiometer signal transducer, can linearly convert the input resistance signal of potentiometer variable end into a standard electrical signal. Input is the resistance signal, the output is the two-way independent 4-20mA signal. The power supply is isolated from the input. The product can be directly used for the resistance of the potentiometer variable end of the measurements, it is also used with a variety of resistive sensors, such as resistive displacement sensors, resistive valve position sensors, etc. It can be widely used in telecommunications, electricity, machinery, railways, industrial control and other fields.

    Data Sheet

    Test conditions: auxiliary power: +12 V, room temperature: 25 ℃;
    Input range: 0~ (100Ω~ 1KΩ);
    Output: 4~ 20mA (two-way);
    Power supply: +24VDC;
    Accuracy: 0.5 (With reference error);
    Temperature drift: 250ppm/℃;
    Isolation voltage: 2500V DC;
    Load capacity: 100~300Ω;
    Response time: ≤250 mS;
    Rated power consumption: ≤500mW;
    Output ripple: None;
    Frequency response range: None;
    Surge Immunity: None;
    Input Overload Capacity: None;
    Burst immunity: None;
    Working temperature: 0 ~ 50 ℃;
    Storage conditions: -40 ~ +70 ℃.

    CE-W01-5*MS3 resistance input / 4-20mA output,

    “*” for 2, 3, 4, 9 indicates power supply are +12V DC, +15V DC, +24V DC and 220V AC.

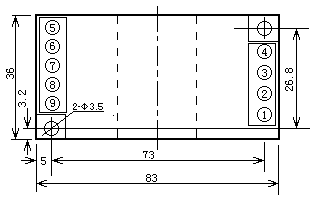

    MS3 case


    DIN rail or screw mounting plan
