Single Phase AC Current Transducer

HOME > Current > One Phase AC Current Transducer

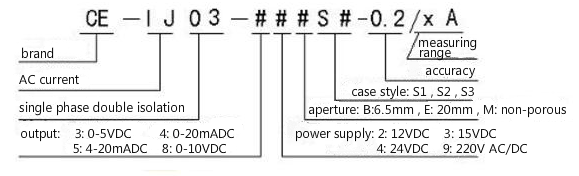

  • ​ENTRIES:Part Number GuideData SheetFAQ
  • This device is a 1-phase AC current electrical isolation transducer. Used the principle of electromagnetic isolation, the input of AC current signal are converted into standard analog signal output. To achieve the measurement of AC current signal monitoring, the input and output of the product with a very good linearity. The products are widely used in telecommunications, electricity, railways, industrial monitoring and other fields.

    Data Sheet

    * Test condition: room temperature:25℃.

    *Input range: current: 0-0.1A~800A AC(BS2 products to 50A,GS4 products to 500A,ES3 products to 800A);

    * Output: 0-5V、0-20mA、0-10V、4-20mA;0-5kHz、0-10kHz;

    * Auxiliary power supply:12V、15V、24V DC、85-265V AC/DC (BS3 case style);

    * Accuracy: class 0.2;

    * Load capacity: load≥2KΩ(voltage output) , load≤250Ω(current output);

    * Temperature drfit: ≤200ppm/℃;

    * Isolation voltage: ≥2500 V DC;

    * Response time: ≤250 mS;

    * Rated power consumption: voltage output<0.3W, current output<1W;

    * Output ripple≤10mV;

    * Frequency range: 45Hz-65Hz;

    * Input overload capacity: 20 times of the measured current norminal value( apply one second repeat 5 times, interval 300S);

    * Operating condition: temperature:-10~60℃; humidity: ≤95% (no dew);

    * Storage condition: -40~+70℃.




    MS1 case style


    BS2 case style


    BS3 case style


    ES3 case style

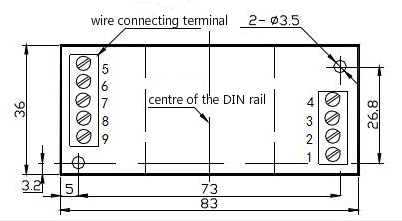

    Installation dimensions

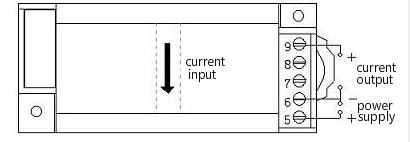

        Wiring diagram of CE-IJ03-**BS2/ CE-IJ03-**ES3 with current output

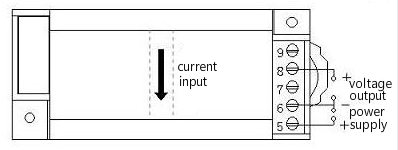

    Wiring diagram of CE-IJ03-**BS2/ CE-IJ03-**ES3 with voltage output

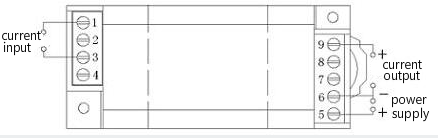

                                                  Wiring diagram of CE-IJ03-**MS1 with current output

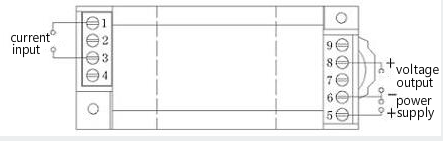

                                                   Wiring diagram of CE-IJ03-**MS1 with voltage output

    Small size, installation and wiring is convenient.

    High precision, better than class 0.2, low temperature drfit.

    High reliability.

    A variety of special products can be customized according to customer's requirements.
