Three Phase True RMS AC Current Transducer

HOME > Current > Three Phase AC Current Transducer

  • ​ENTRIES:Part Number GuideData SheetFAQ
  • This device is a 3-phase AC current isolation transducer, true RMS measurement. Adopts the principle of electromagnetic isolation, can measure three-phase AC current non-sinusoidal alternating signal RMS after the True RMS conversion, isolated and linearly output standard voltage or current signals. The product is widely used in non-standard waveform distortion sine wave real-time signal detection and monitoring.


    Data Sheet

    * Test conditions: room temperature: 25℃;

    * Input range: 0~1AAC~30AAC

    * Output: voltage: 0~5VDC,0~10VDC,

                    current:  0~20mA, 4~20mA,

                    frequency: 0~5KHZ, 0~10KHZ;

    * Power supply: 12VDC, 15VDC, 24VDC;

    * Accuracy: class 0.5;

    * Load capacity: load ≥ 1KΩ (voltage output), load ≤250Ω (current output);

    * Temperature drift: ≤350ppm/℃;

    * Isolation voltage: ≥2500 V DC;

    * Response time: ≤350 mS;

    * Rated power consumption: voltage output is 0.5W; current output is 2 W

    * Output ripple: ≤10mV;

    * Frequency range: 45~65Hz(up to 5K, please specify when ordering);

    * Surge impact immunity:

       Power port one-level ± 0.5KV (L-N/2Ω/integrated wave)

       Analog I/O port one-level ± 0.5KV (L-N/40Ω/integrated wave);

    * Impulse immunity: input / power port ± 2KV, analog I /O port ± 1KV;

    * Input overload capacity: 20 times of the measured current nominal value of the measured current   (maximum 500A), (apply one second , repeat 5 times, interval 300S);

    * Operating temperature: -10~ 60°C; humidity: ≤95% (no dew);

    * Storage temperature: -55 ~+65°C; humidity: ≤95% (no dew).





    BS3 case style



    BS3 case style installation dimensions

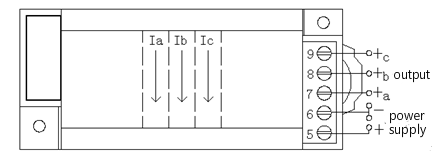

    CE-IJ31A-**BS3 connection diagram

    Measure the RMS current of each phase;

    High precision, low temperature drift;

    Small size, easy to install on-site;

    High reliability, can resist the surge over 2KV.
